product description
Ag/Cu/Ag Tri-metal Contact Rivets
Peoduct Material
Ag/Cu/Ag Tri-metal Contact Rivets
Standard Dimensios
| Head | Head | Silver Layer | Shank | Shank | Shank Silver | Spherical | Angle | ||
| Diameter | Thickness | Thickness | Diameter | Length | Layer Thickness | Radius | θ(°) | ||
| (D) | (T) | (S) | (d) | (L) | (H) | (SR) | |||
| Tolerance | ±0.10 | ±0.05 | S≤0.4： | 0.04 | 0 | 0.15 | ±0.04 | ±0.2R | ±2° |
| 0 | |||||||||
| S＞0.4： | 0 | -0.1 | 0 | ||||||
| -0.04 | |||||||||
| Dimension | 2.5-3.0 | 0.8-1.2 | 0.3-0.6 | 1.5 | 1.0-2.5 | 0.5-1.0 | 4-10 | 11° | |
| 3.2-4.0 | 0.8-1.2 | 0.4-0.7 | 2 | 1.2-3.0 | 0.5-1.5 | 6-12 | |||
| 4.0-5.0 | 0.9-1.3 | 2.5 | 1.5-3.5 | 0.8-2.0 | 8-15 | ||||
| 5.0-6.0 | 1.0-1.5 | 3 | 2.0-4.0 | 1.0-2.5 | 10-20 |
Application Scope
Trimetal rivets are normally used as double side contacts,mainly used in relays, micro switches,button switches and contactors.

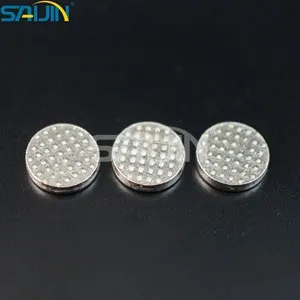

GENERAL DESCRIPTION
Bimetal contact buttons can be supplied in a large varitey of configurations and combinations of materials, The material of the working layer may be Ag,AgCdO or AgNi,Forthe side to be welded to the support material steel or Cu-Ni alloy can be used,The thickness of top working layer is within half of the top layer thickness .In the standard design the contactbuttons have 3,5or7 spherical projections,Other numbers of projections and shapes of the projections,however,are also possible
PRODUCT MATERIAL
Bimetal Rivets: Ag.FAg.AgNi.AgCdO.AgSnO2.AgSnO2In2O3.AgZnO.AgCu.CuNi.Cu
Tolerances
| Head Diameter | Head Thickness | Shank Length | Shank Diameter | Silver Layer Thickness | Angle | Spherical Radius | |
| ±0.10 | ±0.05 | ±0.15 | -0.12 | S≤0.4： | 0.04 | ±0.2° | ±0.2R |
| 0 | 0 | ||||||
| S＞0.4： | 0 | ||||||
| -0.04 |
Application Scope
Bimetal contact buttons are used by means of the impulse welding technique.Components produced by this method are utilized,e,g,.in temerature controllers or small power relays.
Differnt series,type and sizes of products can be delivered according to customers requirements.
