product description

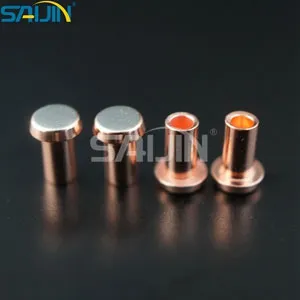

Silver Copper Composite Hollow rivets
Product Material
Ag/Cu Bimetal Rivets
Tolerances
| Head | Shank | Shank | Silver Layer | Angle | Spherical | ||
| Diameter | Thickness | Length | Diameter | Thickness | Radius | ||
| ±0.10 | ±0.05 | ±0.15 | -0.02 | S≤0.4： | 0.04 | ±0.2° | ±0.2R |
| 0 | -0.1 | 0 | |||||
| S＞0.4： | 0 | Head |
Application Scope
Automobile electricalequipments, Household appliances, Relays, Contactors, Temperature controllers, Timers and other electrical appliances
Copper Tungsten Alloy Contact Points
PRODUCT MATERIAL
Wu/FE
General Description
The Tungsten points are arc resistance, redectory,and less current consumption when the metal contact on surface,strong on-off current capability, good wear properties and dynamic performance hit.And its cheaper than any other metal or alloy material.
Application Scope
Mainly used in the electric products such as automobiles, motorcycles, electric horn, magneto etc.
MaterialProperties
| Material | Composition（%） | Grain number（PCS/mm2） | Density g/cm3 | Hardness HV(Mpa) |
| Wu | ≥99.95 | 10000-20000 | ≥19.0 | 680 |
