product description

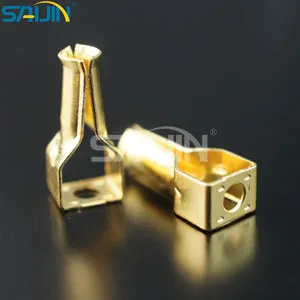

Metal stamping parts for BS standard plugs
PRODUCT MATERIAL
Cooper, brass, stainless steel, etc.
GENERAL DESCRIPTION
There are mainly three kinds of Electrical Contact Component :
- 1,Riveting Parts : contact is riveted on copper component .
- 2,Welding Parts : sheet contact is welded on copper component .
- 3,Stamping Parts: precious clad metal is stamped into contact bridge component
The manufacturing and test equipments for making Contact Component apparatus such as digital and automotive welding stamping machine, riveting machine, welding Automaton, hi-speed stamper, stamper, coloured metallography ，microscope , 3D coordinator etc. We can develop and manufacture contact component according to customers’ specific requirements and the output can surpass one billion pieces annually.
APPLICATION SCOPE
The electrical contact components can be widely use in switches, relays, thermostats, contactors, disconnector，controllers, timers and other low-voltage apparatus.

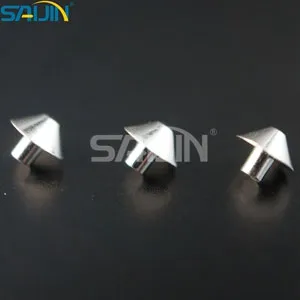

Shed Shape Solid Contact Rivet
Product Material
Ag /Fag
General Description
Silver and fine grain silver(FAg)possess very high electrical and thermal conductivity,low and stable contact resistance,and good workability.For silver resistance to arc erosion and contact welding are limited,mechanica strengthis low,Due To the small quantity of nickel in the fine grain silver,resistance to arc erosion and mechanical strength are higher than that of silver.
Application Scope
Widely used in low current devices,such as relays,timers,auxiliaryt switches for household appliances(FAg),control switches(FAg)
Material Properties
| Ag | Fag | |||
| Tips | Wires | Tips | Wires | |
| Ag Content(wt.％) | ≥99.95 | ≥99.95 | 99.85（+0.15Ni） | 99.85（+0.15Ni） |
| Density(g/cm³) | ≥10.48 | ≥10.48 | ≥10.40 | ≥10.40 |
| Elec,Resistivity(µΩ·cm) | ≤2.10 | ≤1.80 | ≤2.10 | ≤1.85 |
| Hardness Hv (MPa) | ≥400 | ≥600 | ≥450 | ≥650 |
| Tensile Strength(MPa) | - | 230-380 | - | 250-380 |
| Elongation(％) | - | 2-18 | - | 2-8 |
| Manufacturing process | Extruding-Roling | Extruding-Drawing | Extruding-Rolling | Extruding-Drawing |
Company Profile
Wenzhou Saijin Electrical Alloy Co.,Ltd was established on May 4, 1998.specializes in producing all kinds of contact rivets,contact points,contact components,electrical accessories and silver alloy wires.
Sajin use the material Cd free which meets the Eu RoHS&REACH requirement.
Saijin has obtained ISO9001：2015 which assure stable quality.
Saijin has owned strong R&D department,we were awarded with Zhejiang Province scientific and technological enterprise since 2016.
Saijin cooperating with Schneider,Haier,Panasonic,Chnt,Bahra Cables,Apator,FEB,Amper Auto etc.
