Supplier introduction
Wenzhou Saijin Electrical Alloy Co.,Ltd(Saijin for short) specializes in producing all kinds of contact rivets,contact points,contact components,electrical accessories and silver alloy wires.
Sajin use the material Cd free which meets the Eu RoHS&REACH requirement.
Saijin has obtained ISO9001：2015 which assure stable quality.
Saijin has owned strong R&D department,we were awarded with Zhejiang Province scientific and technological enterprise since 2016.
Tel: +86(577)8521 0099 Fax: +86(577)8523 3668 Email: info@wzsaijin.com
product description

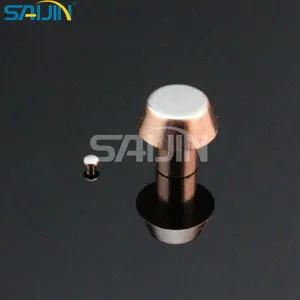

Electrical Silver FAg/Cu Bimetal Contact Rivets
Electrical Silver FAg/Cu Bimetal Contact Rivets is made of FAg/Cu Bimetal Rivets.
Application Scope
Automobile electricalequipments, Household appliances, Relays, Contactors, Temperature controllers, Timers and other electrical appliances.
Tolerances
| Head | Head | Shank | Shank | Silver Layer | Angle | Spherical | |
| Diameter | Thickness | Length | Diameter | Thickness | Radius | ||
| ±0.10 | ±0.05 | ±0.15 | -0.02 | S≤0.4： | 0.04 | ±0.2° | ±0.2R |
| 0 | -0.1 | 0 | |||||
| S＞0.4： | 0 |

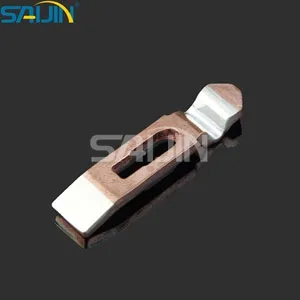

Brass welding with silver alloy parts for electric
PRODUCT MATERIAL
Surface material: gold, gold alloy, silver, silver nickel, silver copper, silver cadmium oxide, tin oxide, such as silver etc
Substrate: pure silver, silver alloy, copper, brass, phosphor bronze, beryllium copper, zinc white copper, nickel, iron, stainless steel etc
GENERAL DESCRIPTION
Precious metal composite strip - stamping components
Based on different using requirements，the billet materials with different properties (complex tape and base tape) are made by advanced thermal composite molecular diffusion technology,rolling to be new functional materials. Due to the composite effect and produce very useful comprehensive performance,especially the electrical properties and wear resistance than the overall precious metal (gold, silver) contact materials are significantly improved, in addition to saving precious metals, reduce product costs.
Specifications Type:
Surface material: thickness 0.01 ~ 1.0mm;
Substrate: thickness 0.1 ~ 8.0mm;
Mosaic, double-sided mosaic, full back cover, three composite, side composite, composite with stamping
APPLICATION SCOPE
Mainly used in wall switch, protector, thermostat, micro-motor brush, commutator, micro switch and other conductive components, relays, micro switches, circuit breakers, connectors, tuning And other electronic components of the production.
