How to Choose the Right Stamping Parts for Your Switch?

You're specifying components for switches and sockets, and the stamping part is the structural backbone that determines the device's durability and performance. An electrical stamping part that's incorrectly specified or poorly manufactured can compromise the entire product. The switch socket steel frame from Saijin is engineered for reliability: precision stamped from quality materials like brass, copper, and phosphor bronze, with tight tolerances and rigorous quality control. This article walks through what to consider when selecting stamping parts for your switch and socket applications—from the material options that match your performance requirements to the manufacturing processes that ensure consistent quality at scale.

What Factors Should You Consider When Selecting Switch Stamping Parts?

Material Selection — Conductivity vs. Strength vs. Spring Properties

The choice of material for a switch socket steel frame directly affects its electrical and mechanical performance. Saijin offers a range of materials to match different application requirements. Brass offers good strength and formability for structural components. Red copper provides the highest electrical conductivity when low resistance is critical. Phosphor bronze delivers excellent spring properties and wear resistance for contact springs that must maintain consistent pressure over thousands of cycles.

Thickness and Dimensional Tolerance — Fit and Function

The thickness and dimensional accuracy of the stamping part determine how well it fits into the switch assembly. Parts that are too thick may not fit; parts that are too thin may lack the required structural integrity. Precision stamping ensures that every part meets the required specifications, eliminating fit issues during assembly.

How Does the Manufacturing Process Impact Quality?

High-Speed Stamping for Volume Production

Saijin operates high-speed stamping presses capable of producing components with tight tolerances and consistent quality. With an annual production capacity of over 100 million pieces, the company can meet the demands of large-scale electrical manufacturing. The speed of the process doesn't compromise quality—it ensures consistent output across millions of parts.

Why Precision Tooling Matters

The quality of the stamping tooling directly affects the quality of the finished part. Saijin's advanced tooling capabilities ensure that each part is stamped with consistent geometry, clean edges, and accurate dimensions. This reduces the need for secondary operations and ensures that parts fit perfectly in the final assembly.

What Quality Control Measures Ensure Consistent Reliability?

Advanced Inspection Equipment for Dimensional Verification

Quality is verified through a range of advanced inspection equipment, including metallurgical microscopes, projectors, 3D imagers, and coordinate measuring machines. These tools ensure that every part meets the required specifications before it leaves the factory. Dimensional accuracy is verified, material composition is confirmed, and surface quality is inspected.

Material Testing for Performance Assurance

Beyond dimensional inspection, material properties are verified to ensure that the stamping part will perform as expected. Hardness testing, tensile strength verification, and conductivity measurements confirm that the material meets the specifications required for the application.

How Does Customization Support Your Specific Design Requirements?

Custom Sizes, Shapes, and Thicknesses

Switch socket steel frames are not one-size-fits-all components. Saijin offers extensive customization: the stamping parts can be customized in size, shape, and thickness according to customer specifications. Whether you need a standard frame or a complex geometry, the parts can be tailored to your exact requirements.

Construction Types — Riveted, Welded, and Composite

Electrical contact components come in three main types: riveted parts (contacts riveted onto stamped parts), welded parts (contacts welded onto stamped parts), and composite stamping parts (precious metals like silver laminated onto stamped parts). This flexibility allows you to select the right construction method for your application.

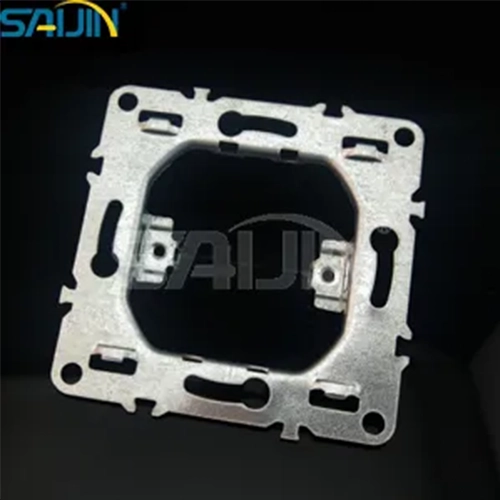

Specifications at a Glance — Switch Socket Steel Frame

Where Switch Stamping Parts Are Most Commonly Used

Switch socket steel frames serve multiple applications where reliable structural support and electrical connectivity are essential:

Wall Switches and Sockets

In wall switches and sockets, the steel frame provides the structural support that holds the mechanism together. The frame must maintain its shape and alignment over thousands of actuations while providing a secure mounting platform for the electrical contacts.

Relays, Contactors, and Circuit Breakers

In relays and contactors, stamping parts serve as contact springs, moving arms, and terminal supports. The spring properties of phosphor bronze are particularly valuable in these applications, where consistent contact pressure is critical for reliable switching. In circuit breakers, stamping parts provide both structural support and conductive paths.

Thermostats and Timers

In thermostats and timers, precision stamping parts ensure consistent mechanical action and reliable electrical connections. The accuracy of the stamping directly affects the accuracy of the device's operation.

Straight Answers on Electrical Stamping Parts

Q: What materials are available for switch socket steel frames?

A: The stamping parts are available in brass, red copper, phosphor bronze, stainless steel, and other materials.

Q: What is the annual production capacity?

A: Saijin has an annual production capacity of over 100 million pieces.

Q: Can the parts be customized?

A: Yes. The stamping parts can be customized in size, shape, and material according to customer drawings and specifications.

Q: What quality control equipment is used?

A: Quality is verified using metallurgical microscopes, projectors, 3D imagers, coordinate measuring machines, and other inspection equipment.

Q: What are the main application areas?

A: Switch socket steel frames are used in wall switches, sockets, relays, thermostats, circuit breakers, contactors, controllers, and timers.

Q: Who manufactures these stamping parts?

A: The stamping parts are manufactured by Wenzhou Saijin Electrical Alloy Co., Ltd. , a company established in 1998 specializing in contact rivets, contact components, electrical accessories, and silver alloy wires.

Request a Quote for Your Stamping Project

An electrical stamping part that combines precision manufacturing, quality materials, and customization capability is the foundation of any reliable switch or socket. The switch socket steel frame from Saijin delivers precision stamping with high-speed presses for consistent quality at scale, material options including brass, copper, and phosphor bronze to match your requirements, customization in size, shape, and construction type to fit your application, and rigorous quality control with advanced inspection equipment.

Whether you're designing wall switches, sockets, relays, or circuit breakers, the switch socket steel frame offers the reliability and performance that electrical manufacturers require. With over 20 years of expertise in electrical alloy manufacturing and customizable solutions available, Saijin provides the technical support to help you select the exact component for your application.

Contact Saijin for a quote or technical consultation → their team can help you select the right material, geometry, and construction method for your specific stamping requirements. Get a switch socket steel frame that delivers reliable performance and long-term durability.
